Tutorial

Creating the root of the tree

A tree is represented by a Node. First, let’s create the root:

from littletree import Node

tree = Node({"population": 7.909}, identifier="World")

All nodes have the following attributes:

Attribute	Description
`identifier`	Identifier of the node. Must be unique among siblings.
`parent`	Parent node. `None` for the root.
`children`	Child nodes.
`data`	Dictionary for storing arbitrary data.

Adding nodes

You can add child nodes via assignment:

tree["Asia"] = Node({"population": 4.694})
tree["Africa"] = Node({"population": 1.393})

Or by providing children or a parent in the constructor:

# Adding children during creation
tree = Node(
    {"population": 7.909},
    identifier="World",
    children={
        "Asia": Node({"population": 4.694}),
        "Africa": Node({"population": 1.393})
    }
)

# Assigning a parent
Node({"population": 1.029}, identifier="America", parent=tree)

Restrictions

A node cannot have multiple parents:

tree1 = Node()
tree2 = Node()
child = Node()

tree1["child"] = child  # OK
tree2["child"] = child  # Raises DuplicateParentError

Use detach() or copy() to reuse nodes:

tree2["child"] = child.detach()  # Move node
tree2["child"] = child.copy()    # Copy node

Sibling identifiers must be unique:

tree = Node()
child1 = Node(identifier="name", parent=tree)
child2 = Node(identifier="name", parent=tree)  # DuplicateChildError
child2 = Node(identifier="different_name", parent=tree)  # OK

Cycles are not allowed:

tree = Node()
tree["child"] = tree  # LoopError

Bulk adding

update() allows adding multiple children efficiently:

tree.update({
    "Asia": Node({"population": 4.694}),
    "Africa": Node({"population": 1.393}),
})

You can copy or detach nodes from another tree:

tree1 = Node(identifier="tree1")
tree2 = Node(identifier="tree2")

tree1["Asia"] = Node({"population": 4.694})

# Copy node from tree1 to tree2
tree2.update([tree1["Asia"]], mode="copy")

# Move node from tree1 to tree2
tree2.update([tree1["Asia"]], mode="detach")

Iteration

Common iterators:

Iterator	Description
`iter(tree.children)`	Iterate over children
`iter(tree.path)`	Iterate from root to self
`iter(tree.nodes)`	Iterate over all nodes
`iter(tree.ancestors)`	Iterate over ancestors
`iter(tree.descendants)`	Iterate over descendants
`iter(tree.siblings)`	Iterate over siblings
`tree.iter_together(tree2)`	Iterate over multiple trees together
`iter(node1.to(node2))`	Iterate from one node to another

The nodes can be iterated in a specific order. Along with each node, an item is also yielded. You can access item.depth to get the node’s depth in the tree, and item.index to get its position among siblings at that level.

for node, item in tree.nodes.preorder():
    ...

for node, item in tree.nodes.postorder():
    ...

for node, item in tree.nodes.levelorder():
    ...

Optional keep argument allows filtering nodes and their descendants:

# Limit iteration to depth 2
for node, item in tree.nodes.preorder(keep=MaxDepth(2)):
    ...

Path operations

Get the path to a node:

str(tree["Europe"].path)  # "/World/Europe"

Access nodes using paths:

lisbon = tree["Europe"]["Portugal"]["Lisbon"]  # Bracket style
lisbon = tree.path(["Europe", "Portugal", "Lisbon"])
lisbon = tree.path("Europe/Portugal/Lisbon")

Create nodes along a path if they don’t exist:

lisbon = tree.path.create(["Europe", "Portugal", "Lisbon"])
lisbon = tree.path.create("Europe/Portugal/Lisbon")

Search using glob patterns:

lisbon_nodes = tree.path.glob("**/Lisbon")

Miscellaneous tree operations

Height and breadth of the tree:

height = tree.levels.count() - 1
breadth = tree.leaves.count()

Depth of a node:

depth = node.ancestors.count()

Path from one node to another:

madrid = tree.path.create("Europe/Spain/Madrid")
madrid_to_lisbon = list(madrid.to(lisbon))

Distance between nodes (edges):

distance = madrid.to(lisbon).edges.count()

Lowest common ancestor:

europe = madrid.to(lisbon).lca

Exporting and serialization

Function	Description
`to_string()`, `show()`	Pretty print the tree
`plot()`	Plot with matplotlib
`to_dot()`, `to_mermaid()`, `to_latex()`	Export to dot, mermaid, or LaTeX
`to_image()`, `to_pillow()`	Requires Graphviz or Mermaid
`from_dict()` / `to_dict()`	Convert to/from JSON-like formats
`from_rows()` / `to_rows()`	Convert to/from path lists
`from_relations()` / `to_relations()`	Convert to/from parent-child lists
`from_newick()` / `to_newick()`	Convert to/from Newick format
`from_networkx()` / `to_networkx()`	Convert to/from networkx graphs

Example using Newick format:

family_newick = "((George, Charlotte, Louis)William,(Archie, Lilibet)Harry)'Charles III'[&&NHX:born=1948]"
family_tree = Node.from_newick(family_newick)
family_tree.show(style="round-arrow")

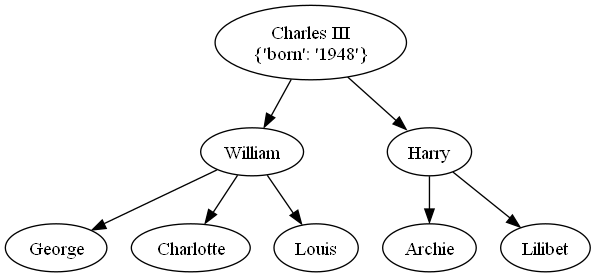

family_tree.to_pillow().show()  # Requires Graphviz and Pillow
family_tree.plot()  # Requires matplotlib

Charles III
{'born': '1948'}
├→ William
│  ├→ George
│  ├→ Charlotte
│  ╰→ Louis
╰→ Harry
   ├→ Archie
   ╰→ Lilibet

royals
